VDMA guideline specifies the requirements for dimensional regularity of finished floors inside of buildings used by guided VNA Industrial Trucks and other Industrial Trucks travelling with elevated loads and/or operator positions inside very narrow aisles or in close proximity to racking in wide aisles.
|
Top Beam Level (m)
|
Zslope (mm/m)
|

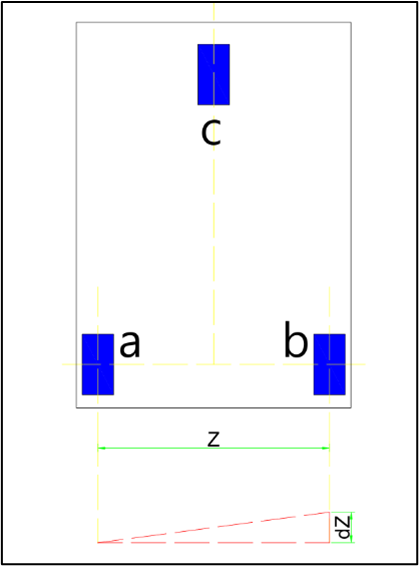

dz = Z x Zslope
|
|---|---|---|
|
15 |
1.0 |
Z x 1.0 mm/m |
|
14 |
1.1 |
Z x 1.1 mm/m |
|
13 |
1.2 |
Z x 1.2 mm/m |
|
12 |
1.3 |
Z x 1.3 mm/m |
|
11 |
1.4 |
Z x 1.4 mm/m |
|
10 |
1.5 |
Z x 1.5 mm/m |
|
9 |
1.6 |
Z x 1.6 mm/m |
|
8 |
1.8 |
Z x 1.8 mm/m |
|
7 |
1.9 |
Z x 1.9 mm/m |
|
6 |
2 |
Z x 2 mm/m |
